Frank Burton and Sons • Sells Electrical Boxes

We have a large selection of Electrical Boxes available in our store at very competitive prices.

Stop by to check out our Electrical Boxes as well as our other Electrical Supplies and Tools.

6109433

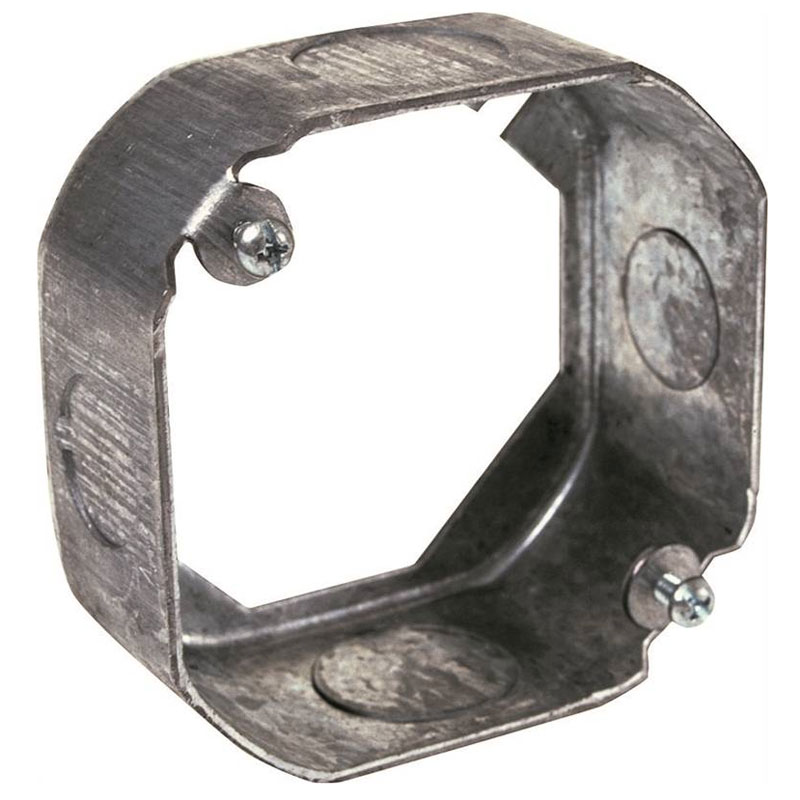

RACO 130 Octagon Box

1-Gang, Galvanized Steel,



Product Overview

Two 1/2 in and two 3/4 in conduit knockouts (sides). Extension rings provide a means for adding additional cubic capacity or as and outlet box for surface conduit.

Product Details

  • Drawn steel construction
  • Combination Phillips/slotted screw heads ensure faster installation
  • Extension rings provide a means for adding additional cubic capacity or as an outlet box for surface conduit
  • Fixture bar hanger allows box to be located anywhere along length of bar



6915730

Carlon B118A Outlet Box

Knockout Cable Entry,

4-Knockout, Captive Nail Mounting, PVC

Product Overview

With captive nails. Four integral clamps, two each end. Meets NEMA OS-2, UL listed, classified for fire wall assemblies.

Product Details

  • PVC construction for easier installation, greater performance and lower installation cost



6075048

Carlon B122A-UPC Outlet Box

Clamp Cable Entry,

Nail Mounting, PVC

Product Overview

With captive nails. Four integral clamps, two each end. Meets NEMA OS-2, UL listed, classified for fire wall assemblies.



6915920

Carlon B232A-UPC Outlet Box

Clamp Cable Entry,

Captive Nail Mounting, PVC

Product Overview

New work safe, non-conductive. With captive nails. Eight integral clamps, four each side. 32 cu-in. Meets NEMA OS-2, UL listed, classified for fire wall assemblies. 3 in D x 4 in x 3-3/4 in.

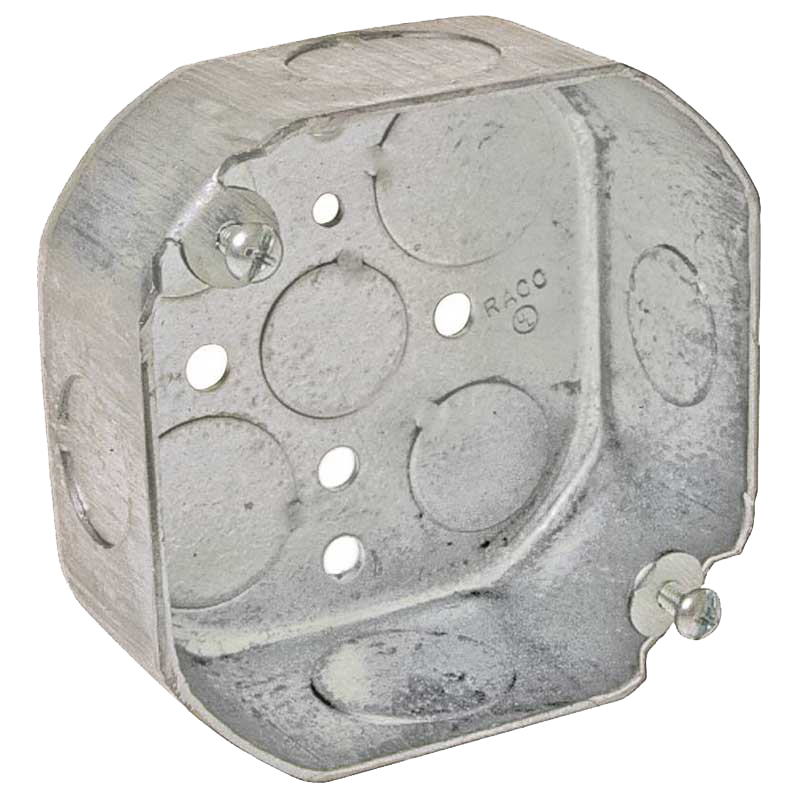

6150692

RACO 127 Octagon Box

1-Gang, Steel, Gray

Product Overview

Two 1/2 in and two 3/4 in conduit knockouts (sides). Two 1/2 in and two 3/4 in conduit knockouts (bottom). No bracket. Can be used in the installation of ceiling or wall lighting fixtures or as a junction box. Not designed for ceiling fan support. 50 lb maximum recommended static load. Acceptable for use in 2 hrs fire rated walls. UL listed. UPC bar code.

Product Details

  • Drawn steel construction with raised ground screw area
  • Combination Phillips/slotted screw heads ensure faster installation
  • Extension rings provide a means for adding additional cubic capacity or as an outlet box for surface conduit
  • Fixture bar hanger allows box to be located anywhere along length of bar

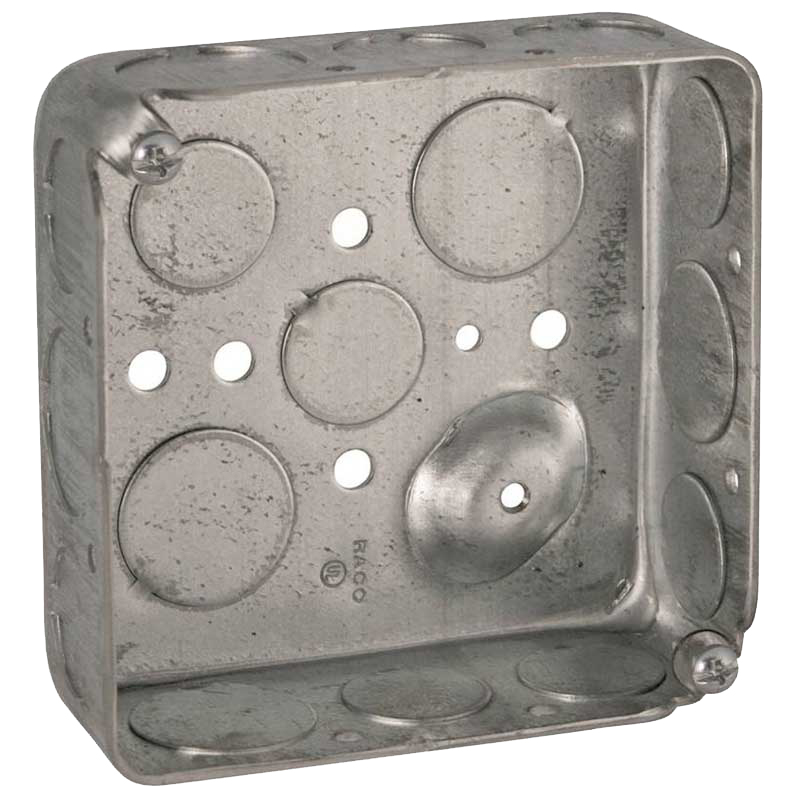

6812903

Orbit D4SB-50/75 Switch Box

Square, Steel

Product Overview

Orbit Switch Box, Number of Knockouts: 16, Knockout Size: 1/2, 3/4 in, Square, Dimensions: 4 in W x 1-1/2 in D x 4 in H, Steel

Product Details

Cable Entry: Knockout
Color: Gray
Cubic Capacity: 21 cu-in
Dimensions: 4 in W x 1-1/2 in D x 4 in H
Finish: Galvanized
Knockout Size: 1/2 3/4 in
Material: Steel
Number Of Gangs: 2
Number Of Knockouts: 16
Shape: Square

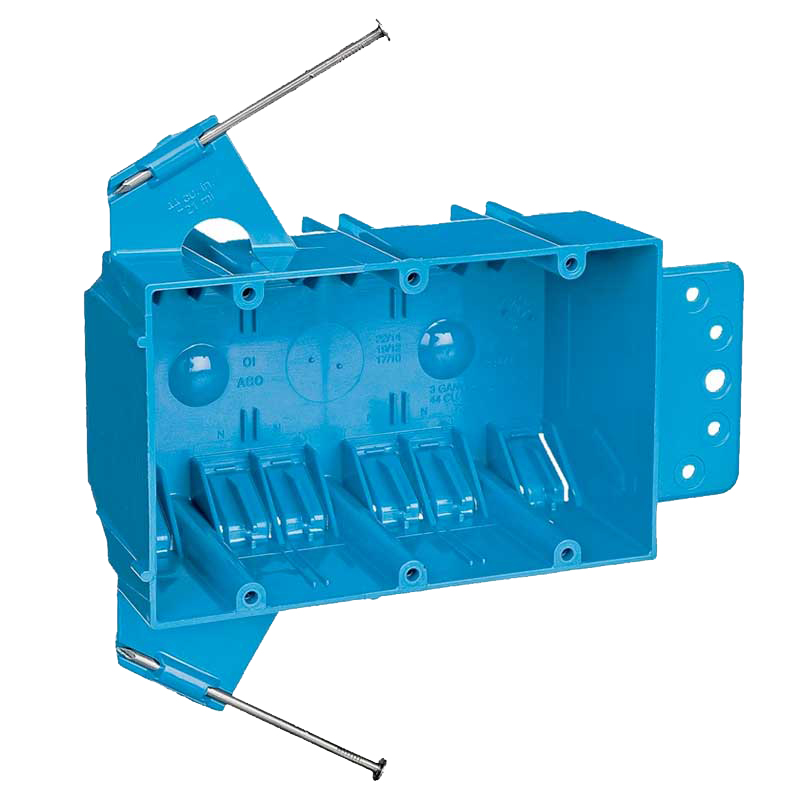

6915953

Carlon B344AB-UPC Outlet Box

Clamp Cable Entry, Captive Nail, Bracket Mounting, PVC

Product Overview

With captive nails and bracket support, twelve integral clamps, six each side. 44 cu-in capacity, 2-11/16 in D x 3-3/4 in x 5-5/8 in. Meets NEMA OS-2, UL listed, classified for fire wall assemblies.

Product Details

Cable Entry: Clamp
Color: Blue
Cubic Capacity: 44 cu-in
Dimensions: 5-5/8 in L x 3-3/4 in W
Material: PVC
Mounting Type: Captive Nail Bracket
Number Of Gangs: 3
Temperature Rating: 90 deg C



6075030

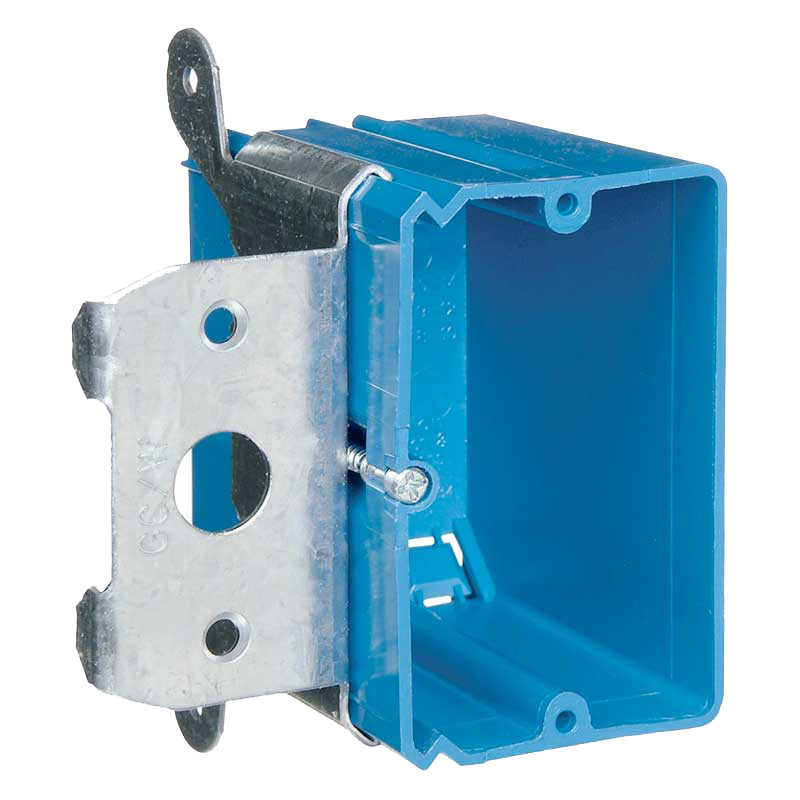

Carlon B121ADJ Wall Box

Clamp Cable Entry, Bracket Mounting, PVC

Product Overview

Provides simple installation and allows adjustment from 0 to 1-3/4 in with the turn of a screw. Clip the included bracket onto any stud, mounts square and secure every time. Securing the bracket to the stud ensures that the box will not move. Comes preset at 1/2 in. 3-3/8 in D x 3-7/8 in x 3-3/4 in. Permissible for use with 90 deg C connectors. Satisfies NEC 370-20. UL listed 5Z74 and classified 2 Hr W/C.

Product Details

Cable Entry: Clamp
Color: Blue
Cubic Capacity: 21 cu-in
Dimensions: 365 in L x 2-1/4 in W
Material: PVC
Mounting Type: Bracket
Number Of Gangs: 1
Shape: Rectangular
Temperature Rating: 90 deg C



6358741

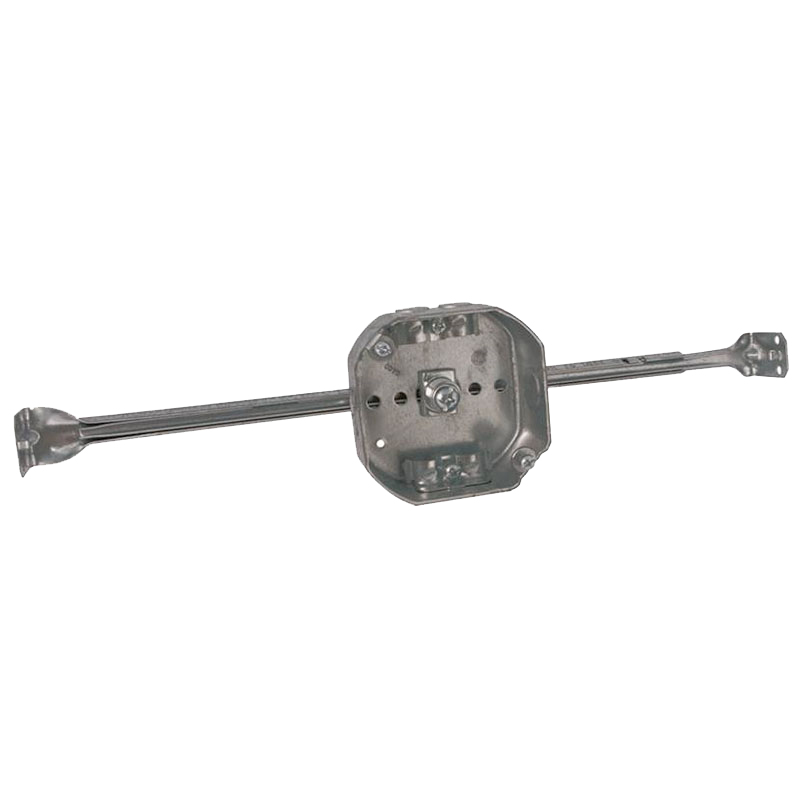

RACO 8326 Ceiling Outlet Box

2-Gang, Steel, Gray

Product Overview

With non-metallic sheathed cable clamps. Two 1/2 in conduit knockouts and four cable knockouts (sides). Used to hang light fixtures between joists or structural members. Includes 4 in octagon box. Not designed for ceiling fan support. 10 lb maximum recommended support load. Furnished with 3/8 in – 18 NPS fixture stud. Bar hanger is adjustable from 14-1/4 to 22-1/2 in. Box is adjustable along entire length of bar. Acceptable for use in 2 hrs fire rated walls. UL listed. UPC bar code.

Product Details

Cable Entry: Clamp
Color: Gray
Cubic Capacity: 15-1/2 cu-in
Housing Material: Steel
Includes: 14-1/4 to 22-1/2 in Bar Hanger
Number Of Gangs: 2
Number Of Knockouts: 6
Overall Depth: 1-1/2 in
Overall Height: 14-1/2 in
Overall Width: 3-9/16 in



6150098

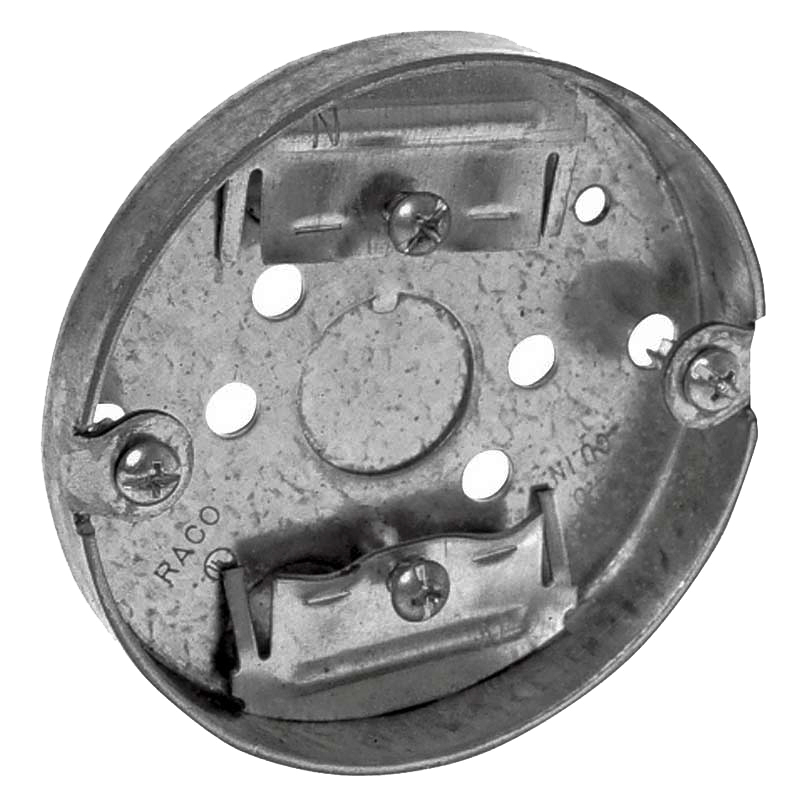

RACO 8292 Ceiling Pan Box

1/2 in L, 3-3/8 in W, Round, Steel

Product Overview

Non-metallic sheathed cable wiring system. Clamps in bottom. Four cable knockouts, one 1/2 in conduit. 3-1/2 in Dia x 1/2 in D. UL listed.

Product Details

Length: 3-1/2 in
Material: Steel
Cable Entry: Non-Metallic Sheathed Cable Clamp
Width: 3-1/2 in
Depth: 1/2 in
Shape: Round
Capacity: 4 cu-in
Standards: UL Listed
Usage: For Installation of Ceiling or Wall Lighting Fixtures



6315162

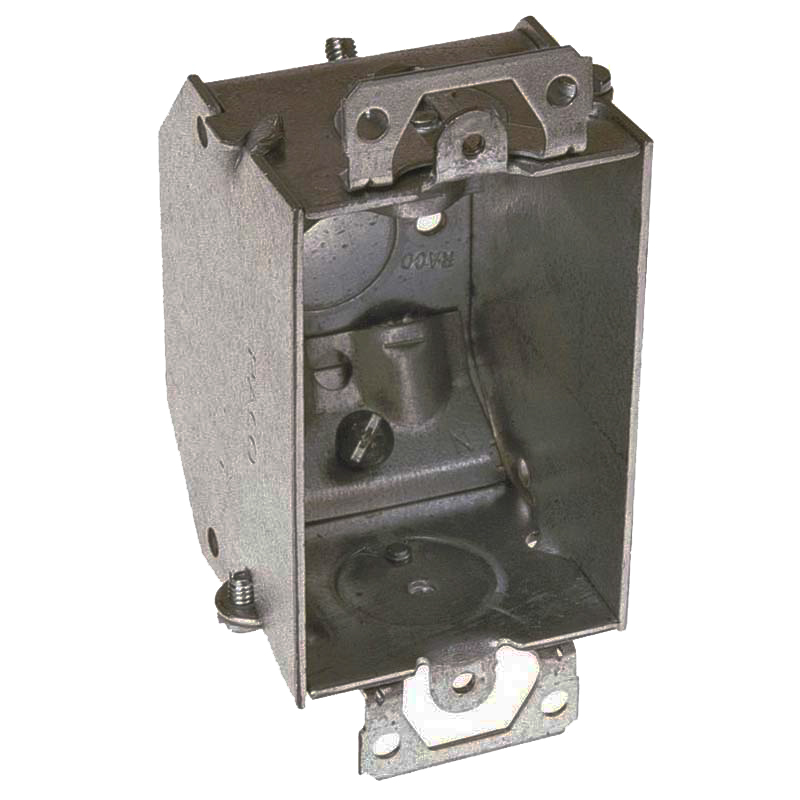

RACO 471 Switch Box

Steel, Gray

Product Overview

Beveled corner box, designed to prevent the clamp screws from protruding into back wall. Non-metallic sheathed cable clamps. Acceptable for use in 2 hrs rated walls. Four cable knockouts (end). One 1/2 in conduit knockout (bottom). No bracket, clamp screws through beveled corners. With ears. 3 in x 2 in x 2-1/4 in D. 10.5 cu-in. UL listed.

Product Details

Cable Entry: Clamp
Color: Gray
Cubic Capacity: 10-1/2 cu-in
Dimensions: 225 in L x 422 in W x 2 in H
Finish: Galvanized
Knockout Size: 1/2 in
Material: Steel
Mounting Type: Plaster Ear Bracket
Number Of Gangs: 1
Number Of Knockouts: 5
Number of Outlets: 1



6075022

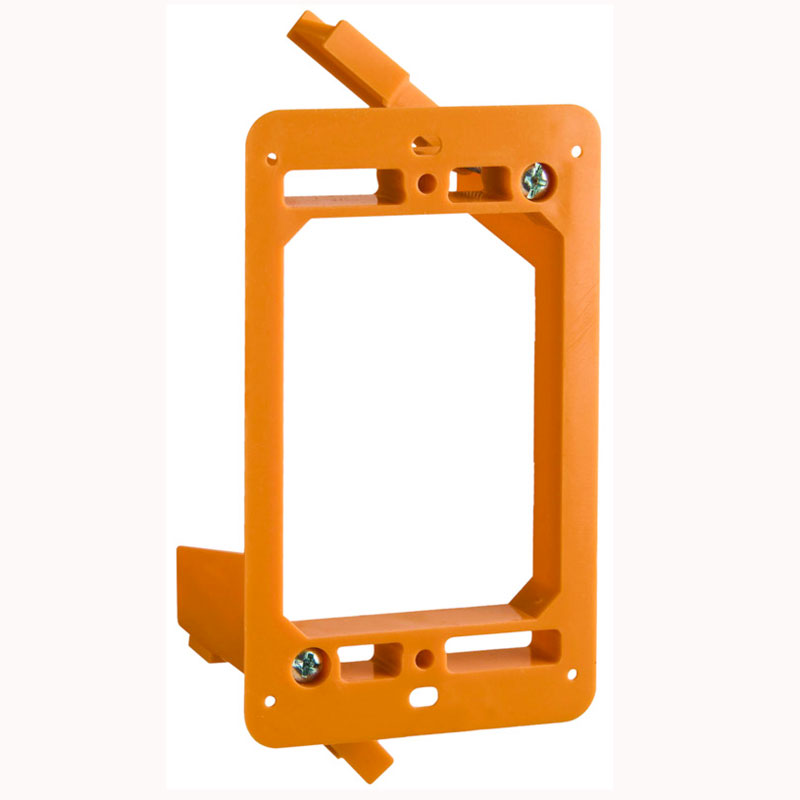

Carlon SC100RR Old Work Outlet Box

1-Gang, Non-Metallic

Product Overview

For telecommunications and other low voltage wiring. Suitable for old work applications. 1.18 in D x 2.18 in x 3.05 in.

Product Details

Color: Orange
Length: 432 in
Material: Non-Metallic
Number Of Gangs: 1
Type: Old Work
Width: 252 in

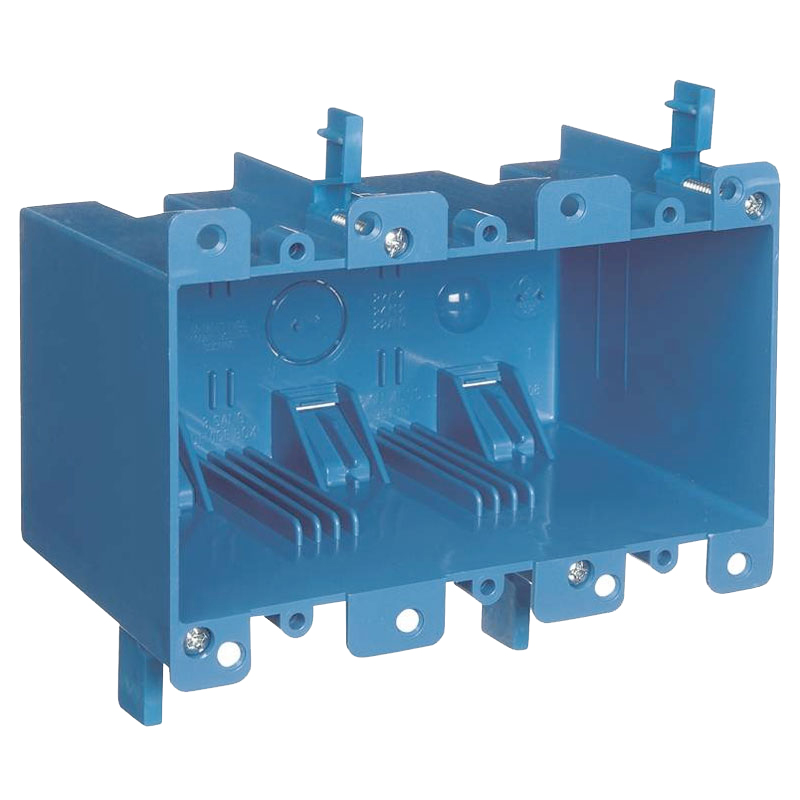

6340509

Carlon B355R Outlet Box

Clamp Mounting, PVC

Product Overview

Extra large box. 6 clamps to hold cable, swing out clamps to hold to the wall. Engraved with NEC approved conductor fill. 13 in x 6-1/4 in x 8 in. UL listed.

Product Details

Color: Blue
Cubic Capacity: 55 cu-in
Dimensions: 572 in L x 279 in W
Material: PVC
Mounting Type: Clamp
Number Of Gangs: 3
Shape: Rectangular
Temperature Rating: 90 deg C

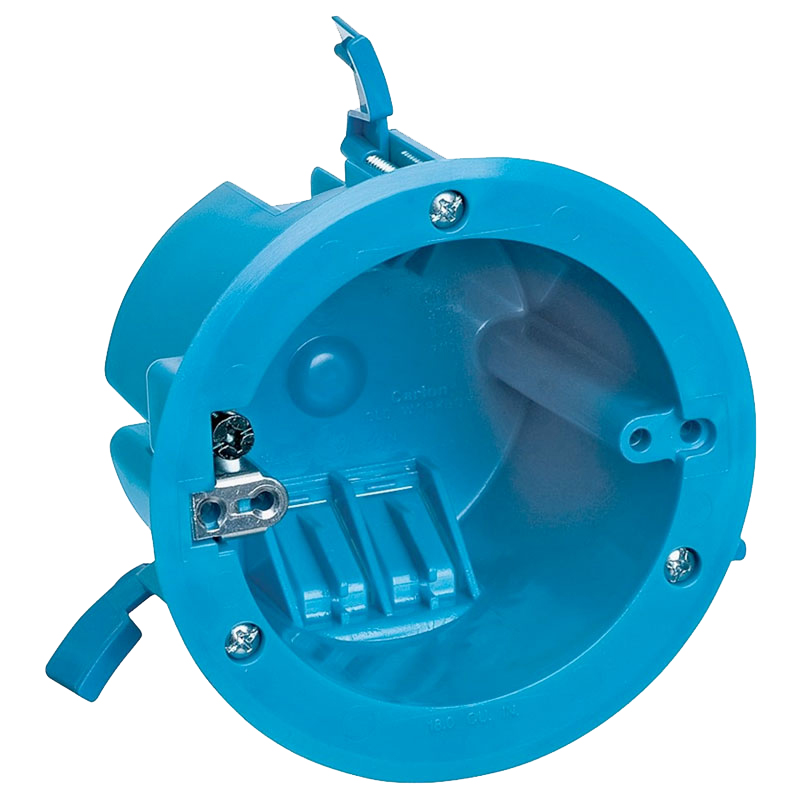

6559728

Carlon B618RR Ceiling Box

1-Gang, Clamp Mounting, Polycarbonate

Product Overview

Round old work box with 4 integral swing clamps. Three zip mount retainers. High-temperature resistant. 4-1/4 in Dia x 2-3/4 in D. UL listed.

Product Details

Color: Blue
Cubic Capacity: 18 cu-in
Depth: 4-1/4 in
Height: 2-5/8 in
Includes: (1) Round Old Work Box (3) Zip Mount Retainers (4) Integral Clamp (4) Integral Swing Clamps
Material: Polycarbonate
Mounting Type: Clamp
Number Of Gangs: 1
Shape: Round
Width: 4-1/4 in



6915151

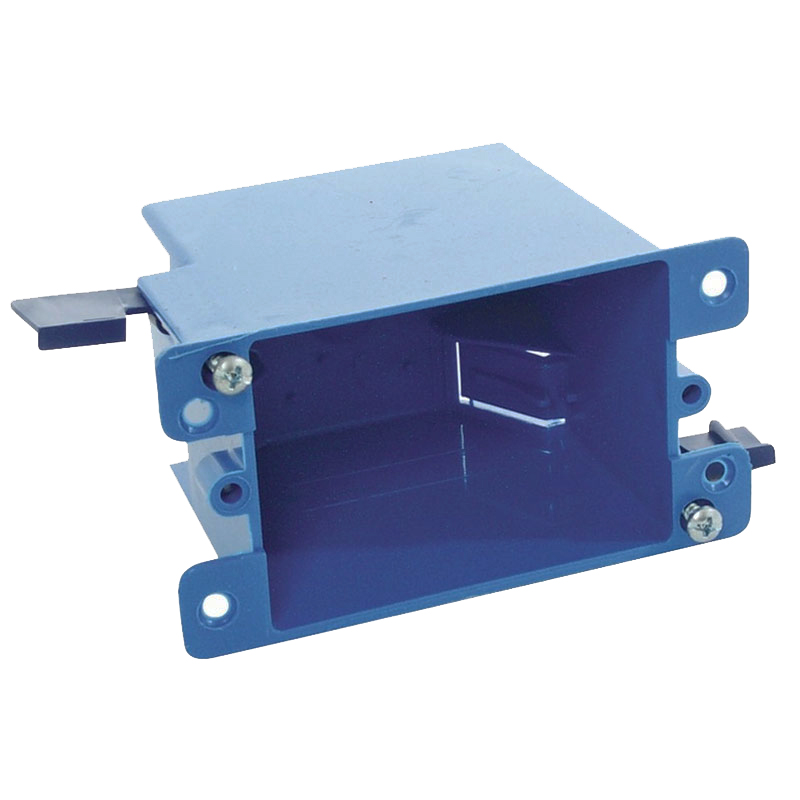

Carlon B114R-UPC Outlet Box

Clamp Cable Entry, Clamp Mounting, PVC

Product Overview

Old work wall case. Safe, non-conductive. Two zip-mount retainers. Four integral clamps, two each end, mounting ears. 14 cu-in, 2-3/4 in x 2-1/4 in x 4-1/8 in. UL listed.

Product Details

Cable Entry: Clamp

Color: Blue

Cubic Capacity: 14 cu-in

Dimensions: 4-1/8 in L x 2-1/4 in W

Material: PVC Mounting Type: Clamp

Number Of Gangs: 1

Shape: Rectangular

Temperature Rating: 90 deg C

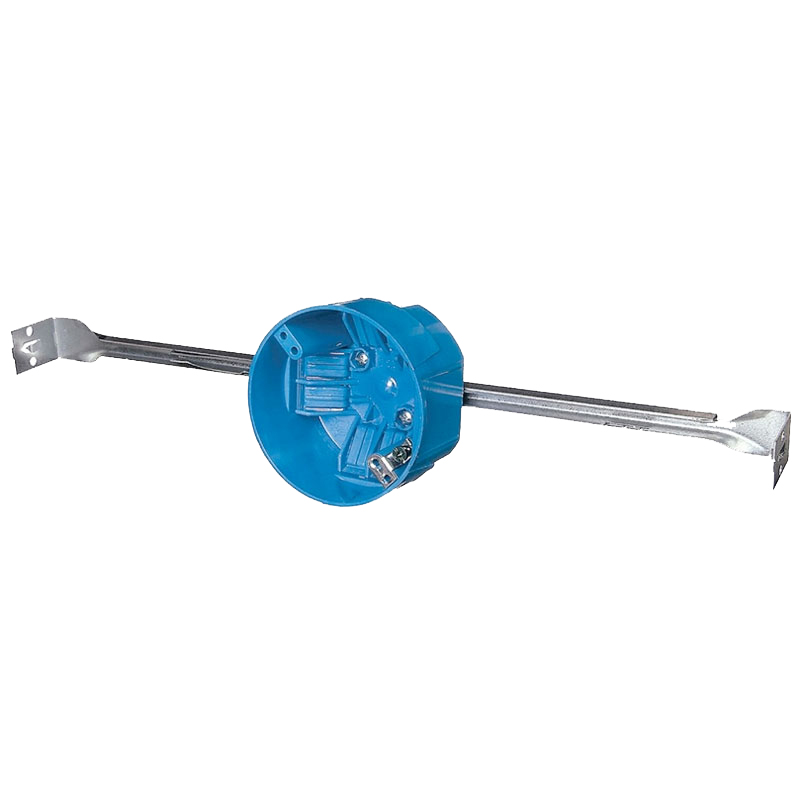

8985632

Carlon B620KR-UPC Ceiling Box

1-Gang, Polycarbonate

Product Overview

Ceiling box with 14.38 to 22-1/2 in adjustable bar hanger. 4 in Dia x 2-1/4 in D. Fixture spacing for 2-3/4 and 3-1/2 in. Integral clamps. Listed for fixture support up to 50 lb. UL listed.

Product Details

Cable Entry: Clamp
Color: Blue
Cubic Capacity: 20 cu-in
Depth: 4 in
Height: 2-1/4 in
Includes: (1) Ceiling Box Adjustable Bar Hanger
Material: Polycarbonate
Number Of Gangs: 1
Shape: Round
Width: 4 in

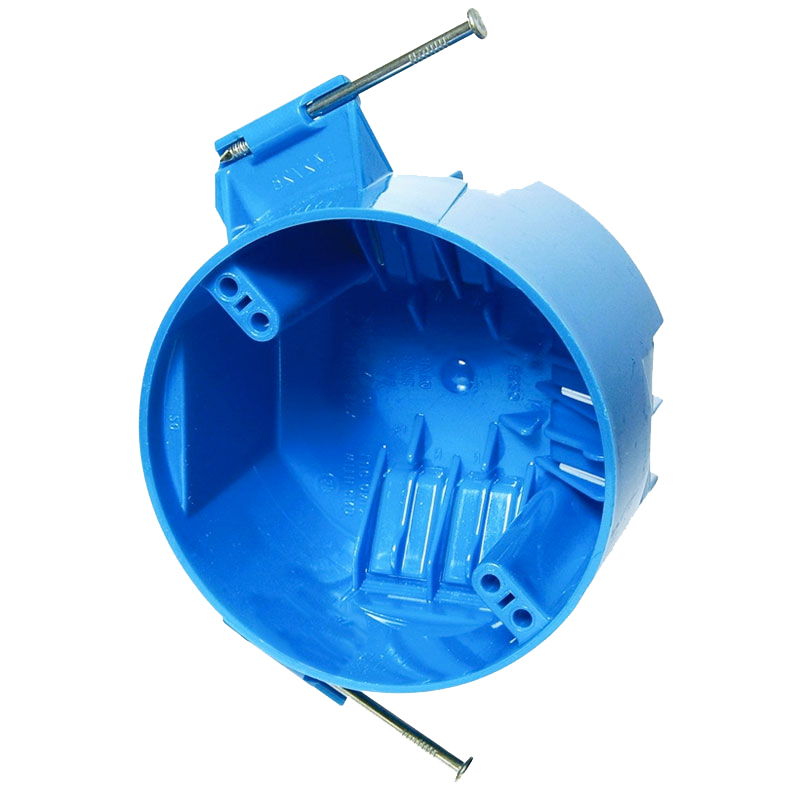

6922157

Ceiling Box

Carlon B520A-UPC 1-Gang,

Captive Nail Mounting, Polycarbonate

Product Overview

With captive nails. 3/0 – 4/0 combination. Fixture spacing for 2-3/4 to 3 in, six integral clamps. 4 in Dia non-metallic ceiling box, 20 cu-in volume. Listed for fixture support up to 50 lb. 4 in Dia x 2-1/4 in D. Meets NEMA OS-2, UL listed and RoHS compliance.

Product Details

Cable Entry: Clamp
Color: Blue
Cubic Capacity: 20 cu-in
Depth: 2-1/4 in
Material: Polycarbonate
Mounting Type: Captive Nail
Number Of Gangs: 1
Shape: Round
Suitable for: Fixture Support Up to 50 lb

6742753

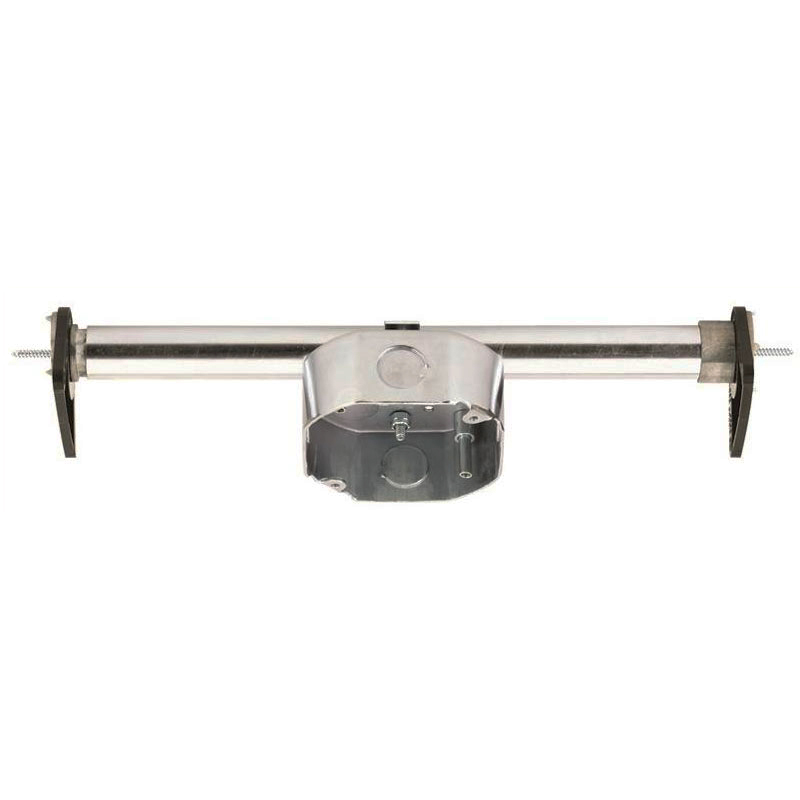

Saf-T Brace

Westinghouse 0101000,

Steel

Product Overview

The Saf-T-Brace allows you to safely install a ceiling fan or light fixture without access to attic space and provides secure attachment to an existing ceiling joist. Ideal for installation during new construction or remodeling, the mounting brace can also be installed in finished ceilings through a hole large enough to fit the box. Each end of the Saf-T-Brace includes four teeth for an extra-strong grip and screws into joists independently for added security and stability. For added ease, the electrical box can be positioned anywhere on the brace to fit your project needs. The heavy-duty, 1-1/2 in, all-metal electrical box, with 15-1/2 in wiring capacity has dual mounting capability for lightweight or heavier fans and fixtures. For fixture support up to 150 lb on 16 in centers and up to 50 lb on 24 in centers. It is acceptable for fan support up to 70 lb.

Product Details

  • Provides fast fingertip expansion and positive attachment to joists
  • Supports fans up to 70 lb
  • Mount lighting fixture or chandelier
  • Supports lighting fixtures up to 150 lb on 16 in centers
  • Position box anywhere along the brace
  • Heavy-duty, all metal, dual mount electrical box
  • 1-1/2 in box depth, 15.5 cu-in wiring capacity
  • Six 1/2 in Romex or conduit knockouts, one Romex connector



6692313

Outlet Box

Carlon B108B-UPC Clamp Cable Entry,

Bracket Mounting, PVC

Product Overview

New work applications, shallow PVC switch box. Integral brackets. 1-1/4 in D x 2-3/8 in x 3-5/8 in. UL listed.

Product Details

Cable Entry: Clamp
Color: Blue
Cubic Capacity: 8 cu-in
Dimensions: 3-5/8 in L x 2-3/8 in W
Material: PVC
Mounting Type: Bracket
Number Of Gangs: 1
Shape: Rectangular
Temperature Rating: 90 deg C

6151914

Handy Box

RACO 8660 1-Gang,

Steel, Gray

Product Overview

Used for convenience outlets, switch boxes or small junction boxes. Drawn construction and raised grounding provision. Acceptable for use in 2 hrs rated walls. Six 1/2 in knockouts (sides). Two 1/2 in knockouts (ends). Two 1/2 in knockouts (bottom). 4 in x 2 in x 1-7/8 in. 13 cu-in capacity. UL listed.

Product Details

  • Raised ground screw provides easier access and prevents the ground screw from protruding beyond the bottom of the box when tightened
  • Acceptable for use in 2 hrs fire rated walls
  • Drawn construction
