Frank Burton and Sons • Sells Plumbing Fittings
We have a large selection of Plumbing Fittings available in our store at very competitive prices.
Stop by to check out all our Plumbing Fittings as well as our other Plumbing Supplies and Tools.

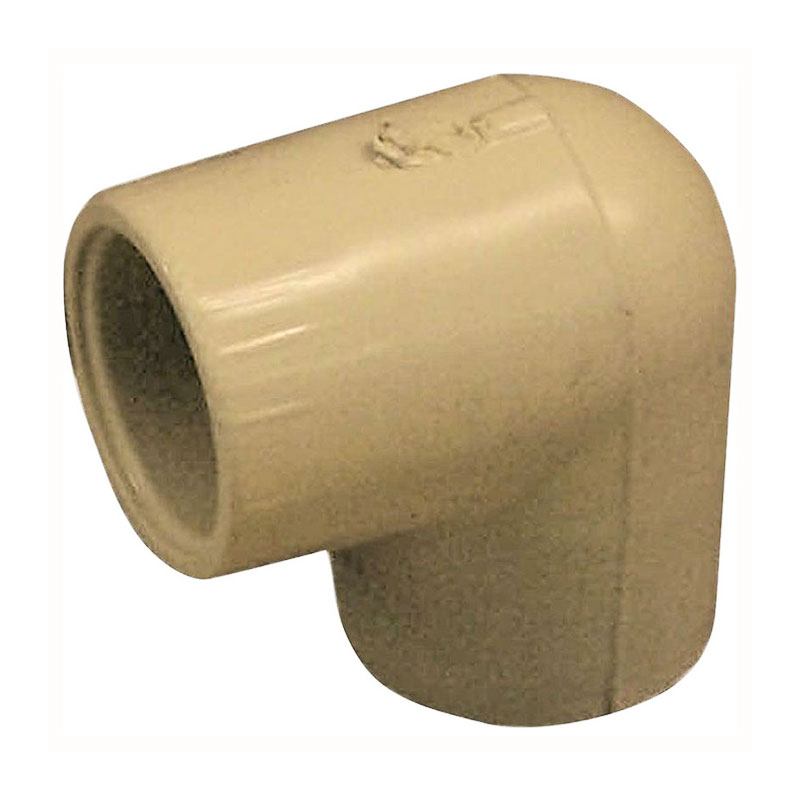

CPVC Pipe Fittings
CPVC Pipe Elbow
NIBCO T00100D Pipe Elbow, Available in 1/2 in, 3/4 in, 1 in,
Female x Solvent Weld, Angle: 90 deg, CPVC, 40 Schedule, 140 psi Pressure
Product Overview
NIBCO Pipe Elbow, Nominal Size: 1/2 in, 3/4 in, & 1in. Female x Solvent Weld Connection, Angle: 90 deg, 140 psi, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Weighted average lead content of 0.25%
- Used to change direction in piping
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications

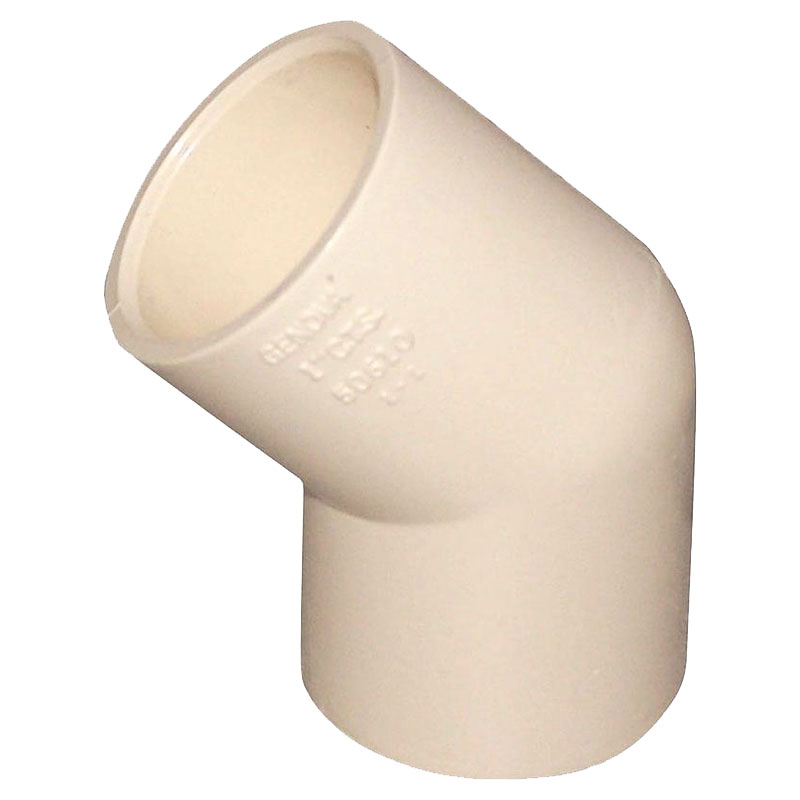

CPVC Pipe Elbow
NIBCO T00160D Pipe Elbow, Available in 1/2 in, 3/4 in, 1 in,
NIBCO Pipe Coupling, Angle: 45 deg, 180 deg F Operating, Schedule Rating: 40, CPVC
Product Overview
NIBCO Pipe Elbow, Nominal Size: 1/2 in, 3/4 in, & 1 in. Angle: 45 deg, 140 psi, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes

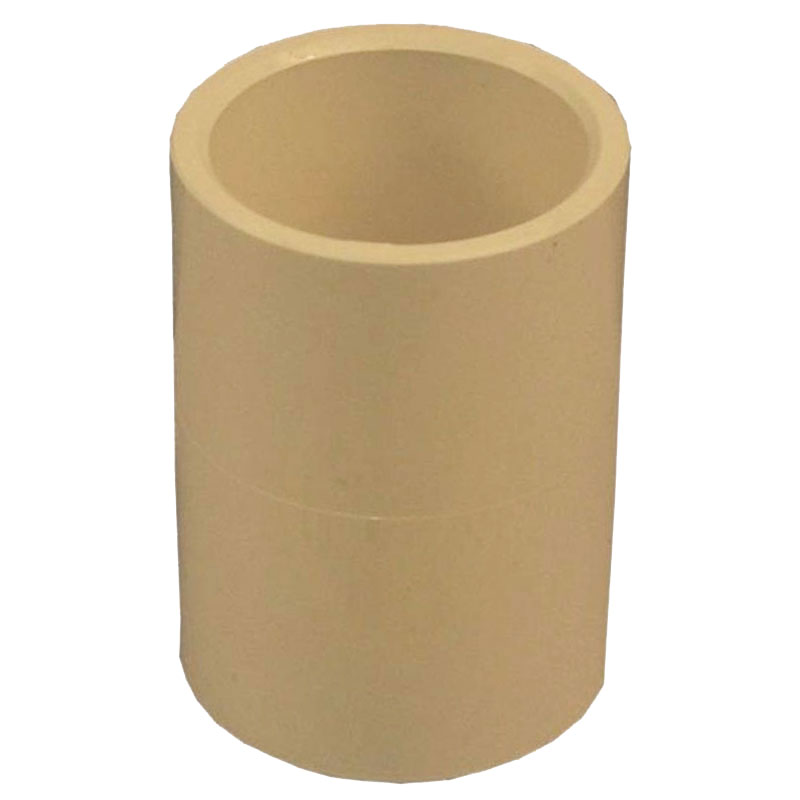

CPVC Pipe Coupling
NIBCO T00030D Pipe Coupling, Available in 1/2 in, 3/4 in, 1 in,
NIBCO Pipe Coupling, 180 deg F Operating, Schedule Rating: 40, CPVC
Product Overview
NIBCO Pipe Elbow, Nominal Size: 1/2 in, 3/4 in, & 1 in. 140 psi, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes

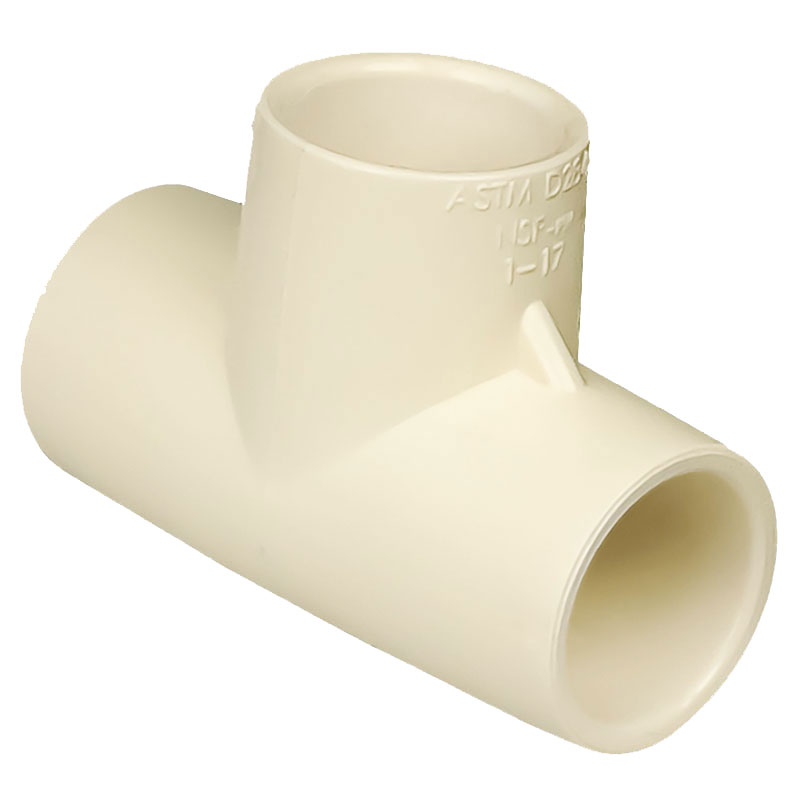

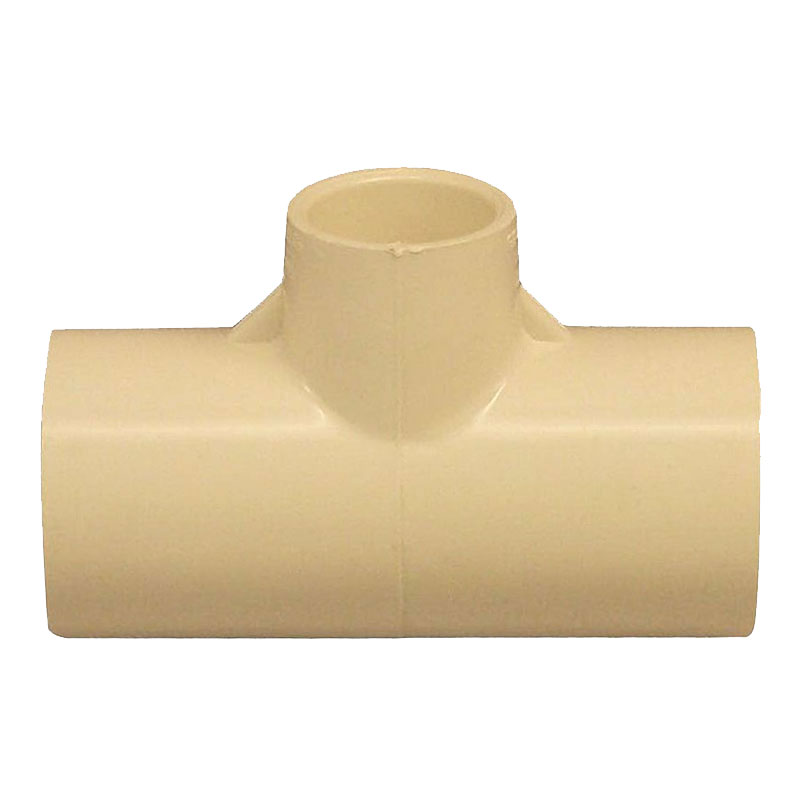

CPVC Pipe Tee
NIBCO T00160D Pipe Tee, Available in 1/2 in, 3/4 in, 1 in,
NIBCO Pipe Coupling, 180 deg F Operating, Schedule Rating: 40, CPVC
Product Overview
NIBCO Pipe Elbow, Nominal Size: 1/2 in, 3/4 in, & 1 in. 140 psi, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes

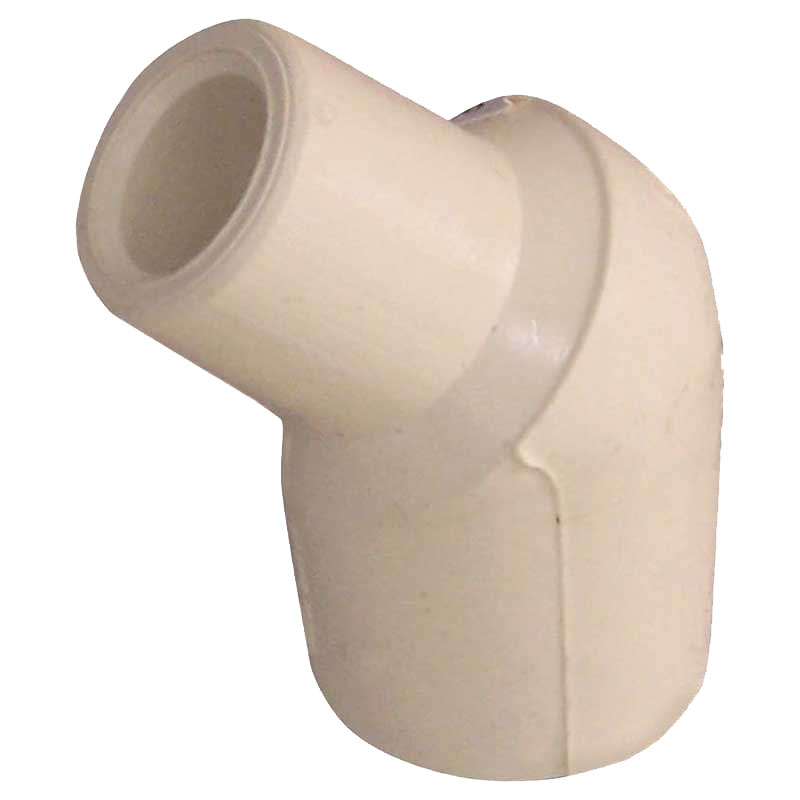

CPVC Street Elbow
NIBCO T00093C Street Elbow, Available in 1/2 in, 3/4 in,
Female x Solvent Weld, Angle: 45 deg, CPVC, 40 Schedule, 140 psi Pressure
Product Overview
NIBCO Street Elbow, Nominal Size: 1/2 in, 3/4 in. Female x Solvent Weld Connection, Angle: 45 deg, 140 psi, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC. A principal use is to offset piping over and around existing piping mounted on flat surfaces such as wall or ceiling
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Weighted average lead content of 0.25%
- A principal use is to offset piping over and around existing piping mounted on flat surfaces such as wall or ceiling
- Used on close offsets where very short pieces of CPVC pipe would otherwise have to be used with conventional 45 deg elbows
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications

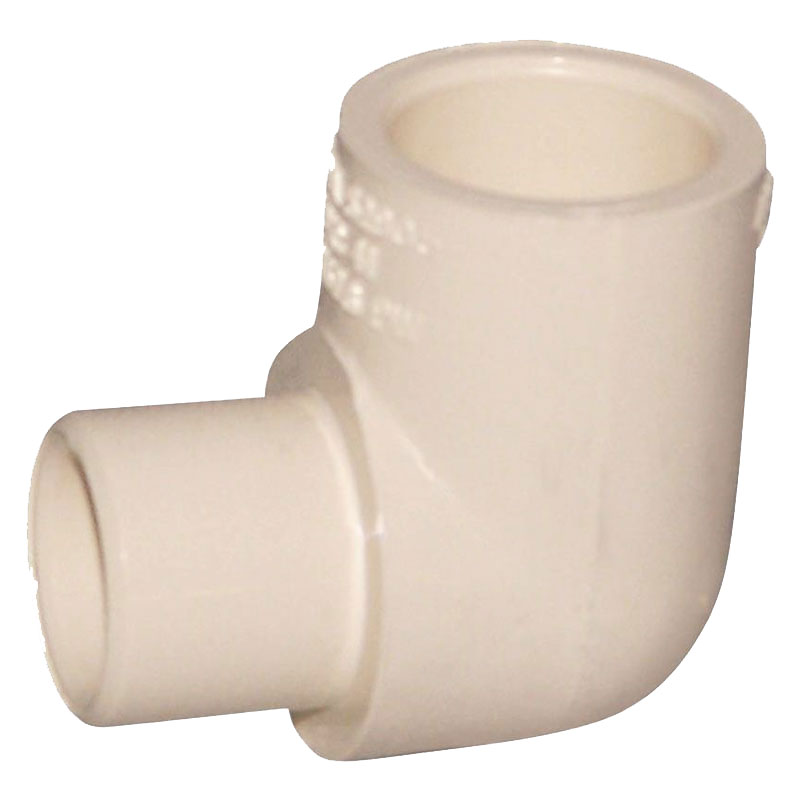

CPVC Street Elbow
NIBCO T00130D Street Elbow, Available in 1/2 in, 3/4 in,
Angle: 90 deg, CPVC, 40 Schedule
Product Overview
NIBCO Street Elbow, Nominal Size: 1/2 in, 3/4 in. Angle: 90 deg, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Weighted average lead content of 0.25%
- Used to change direction in 90 deg piping from a fitting socket
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications

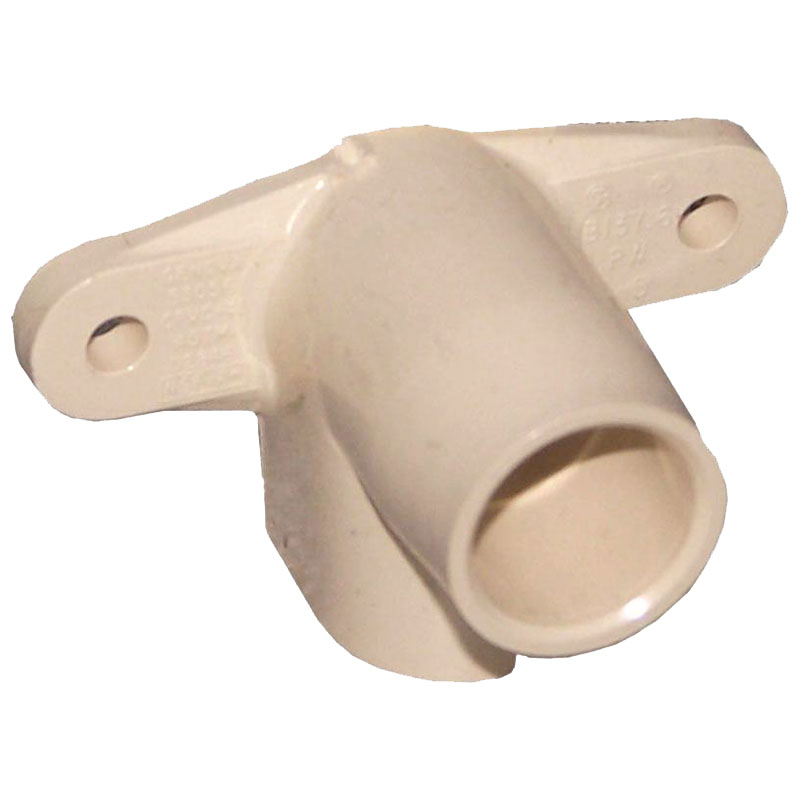

CPVC Drop Ear Elbow
NIBCO T00155C Drop Ear Elbow, Available in 1/2 in,
Angle: 90 deg, CPVC, 40 Schedule
Product Overview
NIBCO Drop Ear Elbow, Nominal Size: 1/2 in, Angle: 90 deg, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Weighted average lead content of 0.25%
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications
- Used to change direction in piping and features lugs for fastening
- Often used in conjunction with washer hose valve for hooking up to automatic clothes washers as well as fabricating water supply piping stub outs for toilet installation

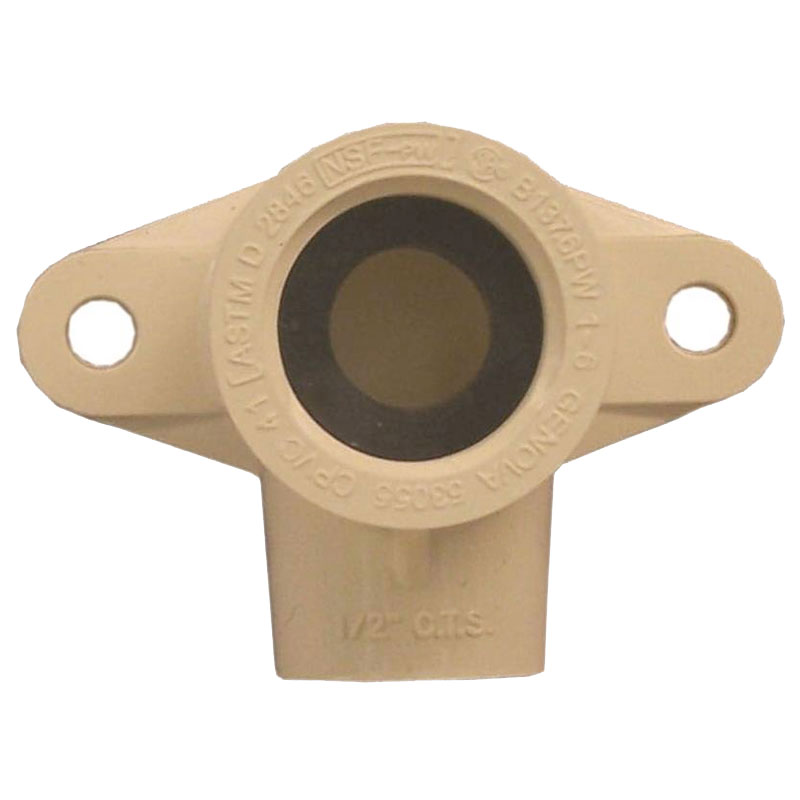

CPVC Drop Ear Elbow
NIBCO T00145D Drop Ear Elbow, Available in 1/2 in,
FIP, 90 deg Angle, CPVC, 40 Schedule
Product Overview
NIBCO Drop Ear Elbow, Nominal Size: 1/2 in, FIP Connection, Angle: 90 deg, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Weighted average lead content of 0.25%
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications
- This elbow adapts from 1/2 in CPVC to 1/2 in male metal pipe threads and features lugs for fastening
- A special elastomeric gasket ensures a leak-proof seal
- Used on tub and shower faucets to adapt from the 1/2 in CPVC riser to the chrome shower arm
- Hand tighten only, seals by means of a gasket and the use of joint compound or PTFE thread tape is not necessary

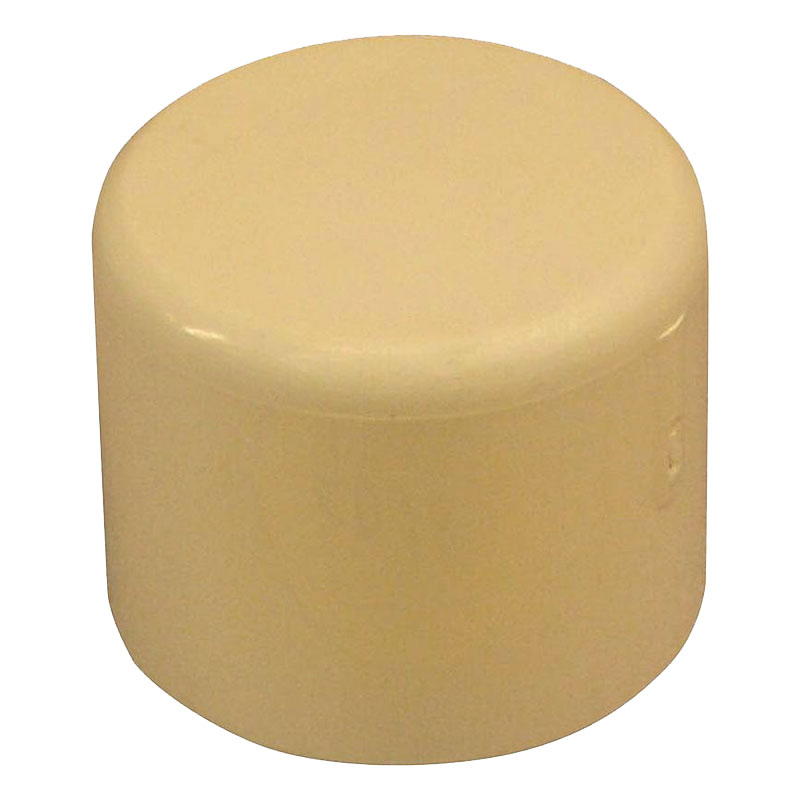

CPVC Pipe Cap
NIBCO T00210D Pipe Cap, Available in 1/2 in, 3/4 in, 1 in.
CPVC, SCH40 Schedule
Product Overview
NIBCO Pipe Cap, 1/2 in, 3/4 in, 1 in, 180 deg F Operating, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- CPVC tubing is rated at 210 deg for water heater relief valve drain applications
- Solvent weld joints
- Most often used in conjunction with short lengths of CPVC tubing to fabricate water hammer arrestors (air chambers) in the CPVC system

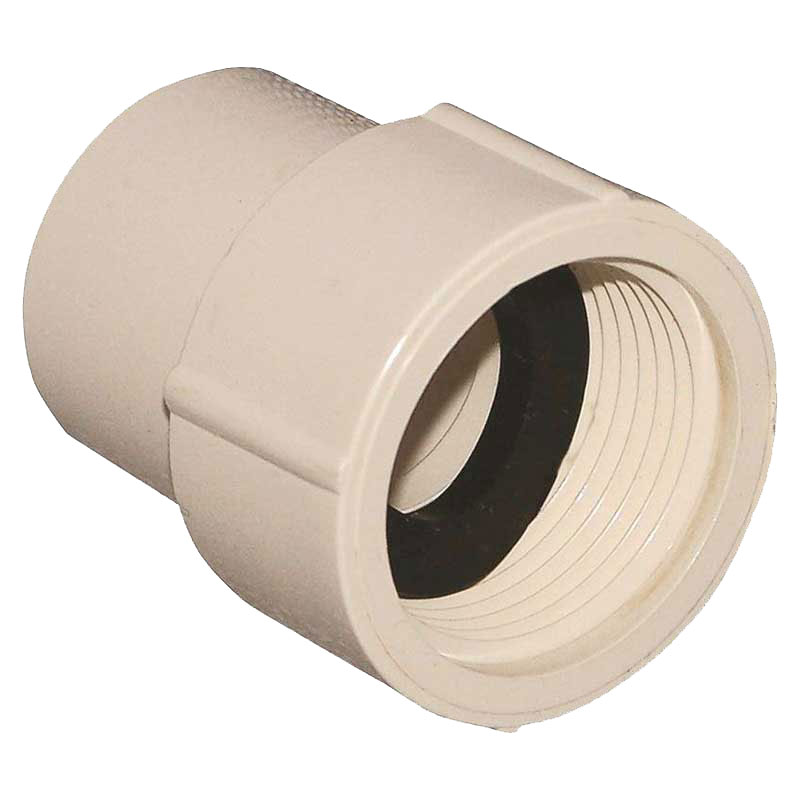

CPVC Pipe Adapter
NIBCO T00380D Pipe Adapter, Available in 1/2 in, 3/4 in, 1 in.
Slip x FIP, CPVC
Product Overview
NIBCO Pipe Adapter, Nominal Size: 1/2 in, 3/4 in, 1 in, Slip x FIP Connection, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes

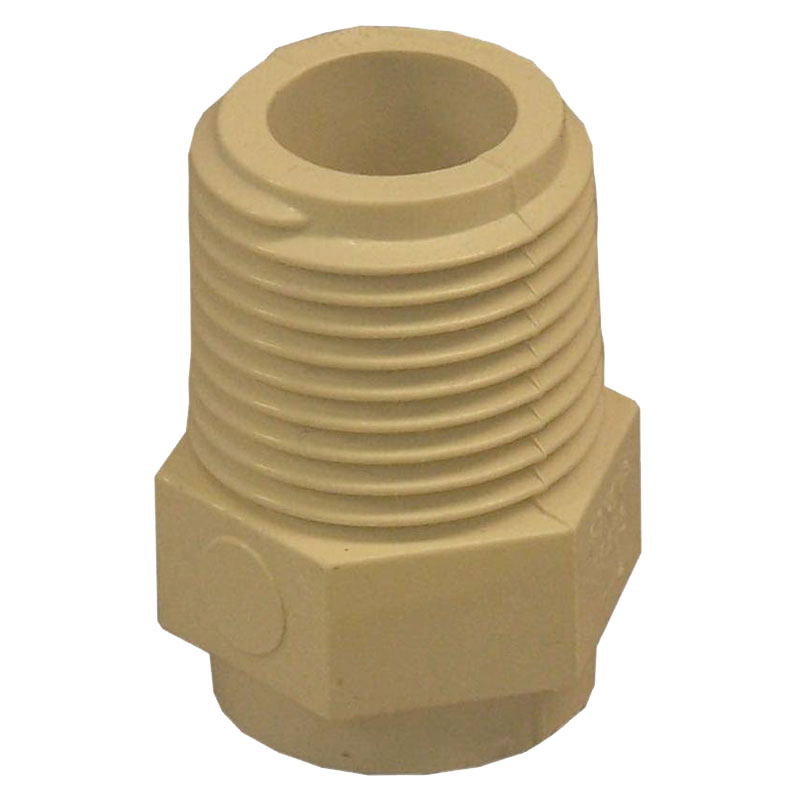

CPVC Pipe Adapter
NIBCO T00060D Pipe Adapter, Available in 1/2 in, 3/4 in, 1 in.
Slip x MIP, CPVC, SCH 40 Schedule
Product Overview
The NIBCO™ CPVC-CTS male adapter is made of FlowGuard Gold® CPVC and is ideally suited for hot and cold water pressure distribution systems in residential and commercial applications. The CPVC-CTS male adapter features a female socket x male NPT threaded connection and provides a means for adapting a solvent weld connection to a threaded connection. Chlorinated Polyvinyl Chloride (CPVC) has proven to be an excellent material for hot corrosive liquids, hot and cold water distribution, and similar applications above the temperature range of PVC. CPVC will not rust, pit, scale or corrode. CPVC fittings are easy to install and are joined by solvent cementing or threading. NIBCO® plastic fittings are backed by a 5-year limited warranty. Because of its longstanding reputation for innovation and precision in design and manufacturing, NIBCO is the preferred brand in the industry.
Product Details
- Slip x MIP
- CPVC systems are accepted by all major model building codes
CPVC Pipe Tee
NIBCO T00180D Pipe Tee, Available in 1/2 in, 3/4 in.
Slip x MIP, CPVC, SCH 40 Schedule
Product Overview
NIBCO Pipe Tee, Nominal Size: 3/4 x 1/2 in, 1 in x 3/4 in. Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details
- Run Size: 3/4 in, Branch Size: 1/2 in.
- Run Size: 1 in, Branch Size: 3/4 in.
- CPVC systems are accepted by all major model building codes

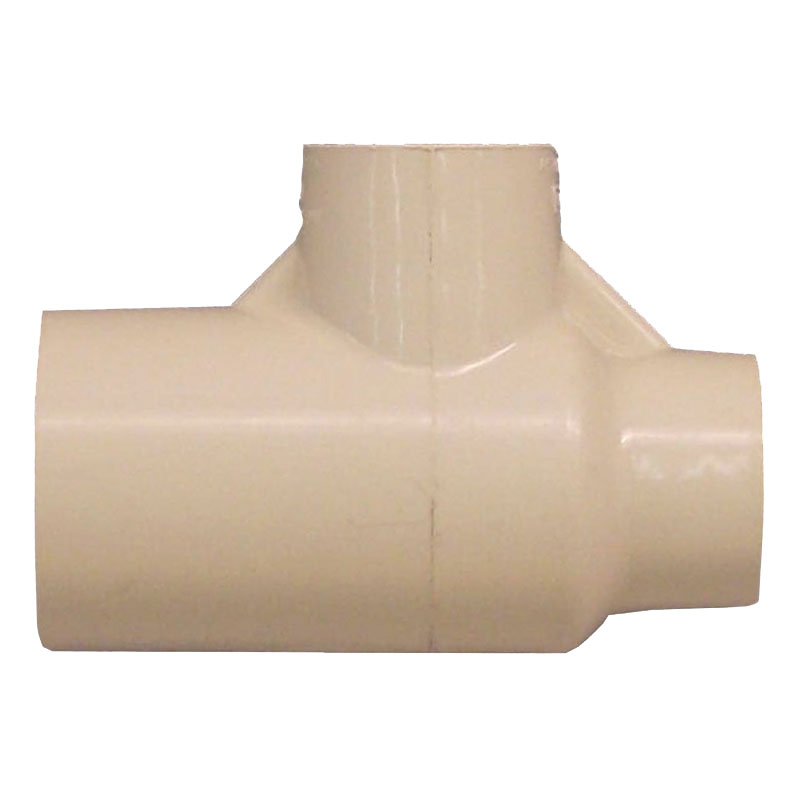

CPVC Pipe Tee
NIBCO T00200C Pipe Tee,
3/4 x 1/2 in, CPVC, 40 Schedule
Product Overview
NIBCO Pipe Tee, Nominal Size: 3/4 x 1/2 in, Operating Temperature: 180 deg F, Schedule Rating: 40, CPVC
Product Details

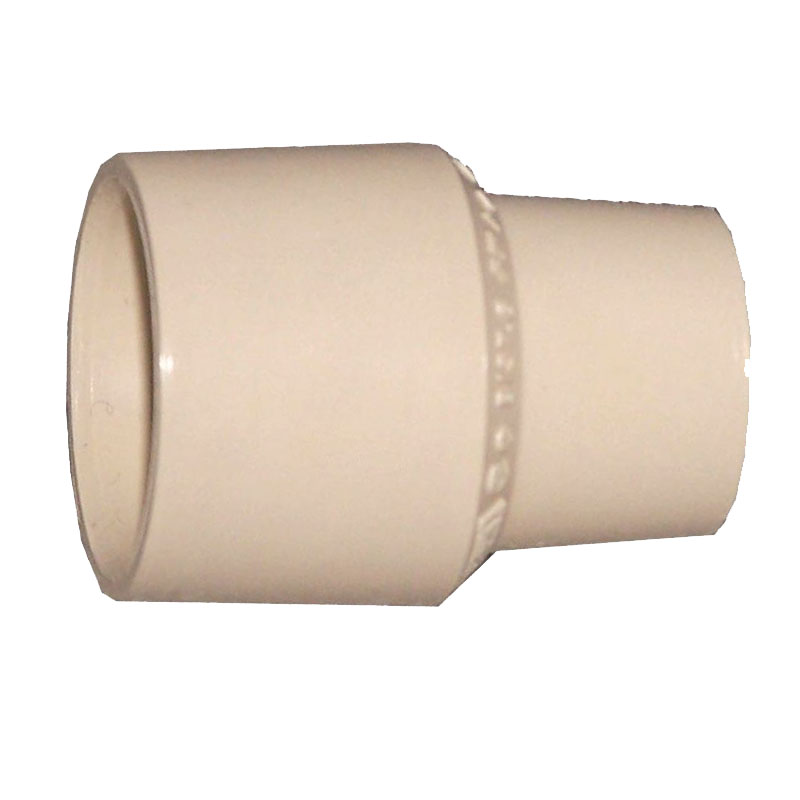

CPVC Pipe Coupling
NIBCO T00050D Pipe Coupling,
3/4 x 1/2 in, CPVC, 40 Schedule
Product Overview
NIBCO Pipe Coupling, 3/4 x 1/2 in, 180 deg F Operating, Schedule Rating: 40, CPVC
Product Details
Reduces to smaller size tubing

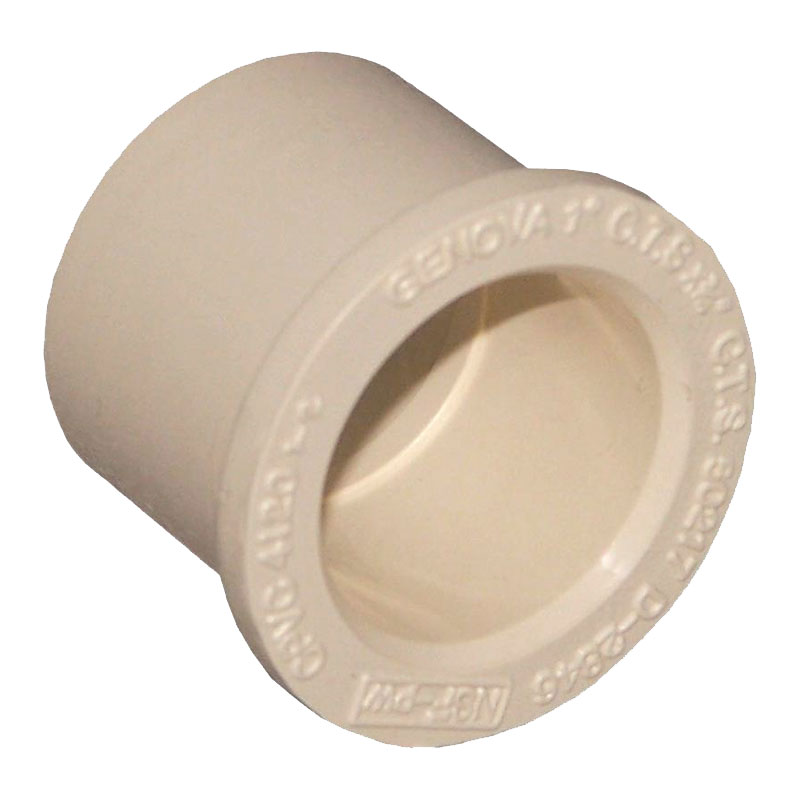

CPVC Pipe Bushing
NIBCO T00230D Pipe Bushing,
3/4 x 1/2 in, CPVC, 40 Schedule
Product Overview
NIBCO Pipe Bushing, 3/4 x 1/2 in, 180 deg F Operating, Schedule Rating: 40, CPVC
Product Details
- Outside diameters are the same as copper tube
- CPVC systems are accepted by all major model building codes
- Carded parts contain bar code and installation instructions
- Solvent weld joints

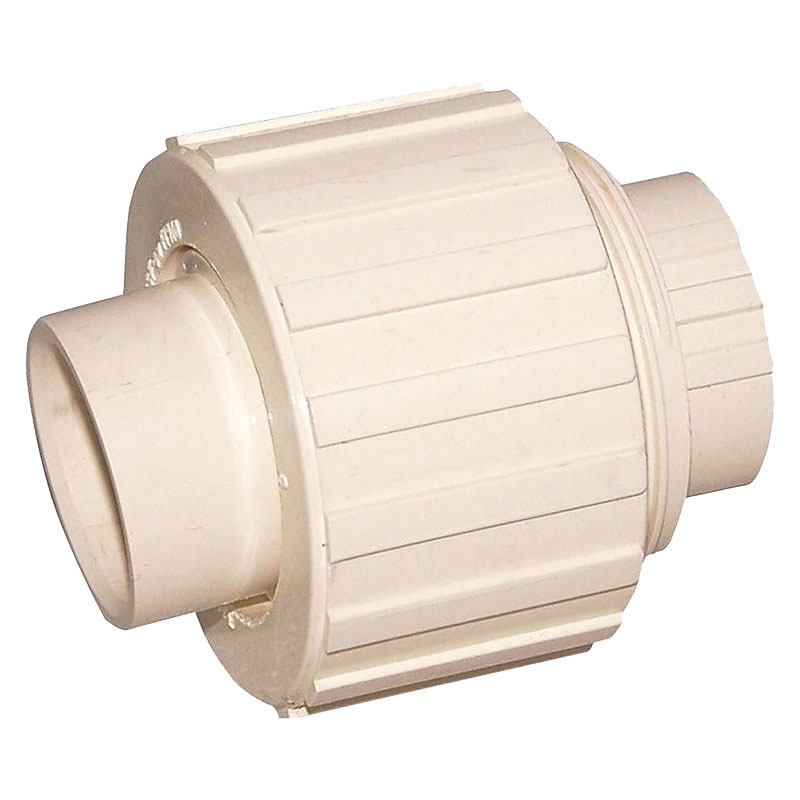

CPVC Pipe Union
B & K 164-204 Pipe Union,
3/4 in, Slip, CPVC, 100 to 400 psi Pressure
Product Overview
This union solvent welds directly to CPVC pipe and provides a method for future disassembly of piping without cutting.
Product Details
More CPVC plumbing fittings available in the store!
Stop by the store to see the complete selection of all types of plumbing fittings, plumbing tools, and plumbing supplies.
